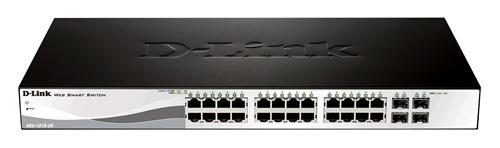

D-Link DGS-1210-28 24 Port Gigabit Switch
24 Ports
SKU: DGS-1210-28
Notify me when back in stock
Recommended Relevant Products
Features
IEEE 802.3az Energy Efficient Ethernet compliant
56 Gbps Switching capacity
Web-based Management and Auto Discovery Utility
True Plug & Play
Fibre Media Support via 4 dedicated SFPs
DSCP and QoS with Auto Voice VLANs for VoIP
Advanced Security Features
IPv4 / IPv6 dual stack*
Fanless Design for Quiet Operation
Limited Lifetime Warranty
Advance Warranty Replacement (24 Hour Cross-shipment)
PORT STANDARDS & FUNCTIONS
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX
- Fast Ethernet
- IEEE 802.3ab 1000BASE-T
- Gigabit Ethernet
- IEEE 802.3x Flow Control
- for Full-Duplex Mode
- Auto-negotiation
Number of Ports: 24 10/100/1000 Mbps, 4 SFP
Network Cables: UTP Cat. 5, Cat. 5e (100 m max.)/ EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex: Full/half duplex for 10/100 Mbps speeds/ Full duplex for Gigabit speed
Media Interface Exchange: Auto or configurable MDI/MDIX
PERFORMANCE:
Switching Capacity: 56 Gbps
Transmission Method: Store-and-forward
MAC Address Table: 16,000 entries per device
MAC Address Update: Up to 256 static MAC entries/ Enable/disable auto-learning of MAC addresses
Maximum 64 bytes packet forwarding rate: 41.7 Mpps
Packet Buffer Memory: 1 MB per device
PHYSICAL & ENVIRONMENTAL
AC Input: 100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption: 16.81 W
Standby Power Consumption: 5.9 W/110 V, 6.42 W/240 V
Fan Quantity: 0
Acoustics: 0 dB(A)
Heat Dissipation: 57.36 BTU/hr
Operating Temperature: -5 to 50 °C (41 to 122 °F)
Storage Temperature: -5 to 50 °C (41 to 122 °F)
Operating Humidity: -5 to 50 °C (41 to 122 °F)
Storage Humidity: 0% to 95% non-condensing
Dimensions: 440 x 210 x 44 mm (17.32 x 8.27 x 1.73 inches) 19” standard rack mounting width, 1U height
Weight: 2.9 kg (6.39 lbs)
Diagnostic LEDs:
- Power (per device)
- Link/Activity/Speed (per 10/100/1000 Mbps port)
-
Link/Activity/Speed (per SFP port)
MTBF: 236,739 hours
Certifications:
- FCC Class A
- CE Class A
- ICES-003
- VCCI Class A
- C-Tick
-
BSMI
Safety:
- cUL
- CE LVD
SKU | DGS-1210-28 |
Model # | DGS-1210-28 |
Barcode # | 790069373008 |
Brand | D-Link |
Shipping Weight | 1.5000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.100m |
Shipping Cubic | 0.001000000m3 |
Unit Of Measure | ea |
Type | store |
