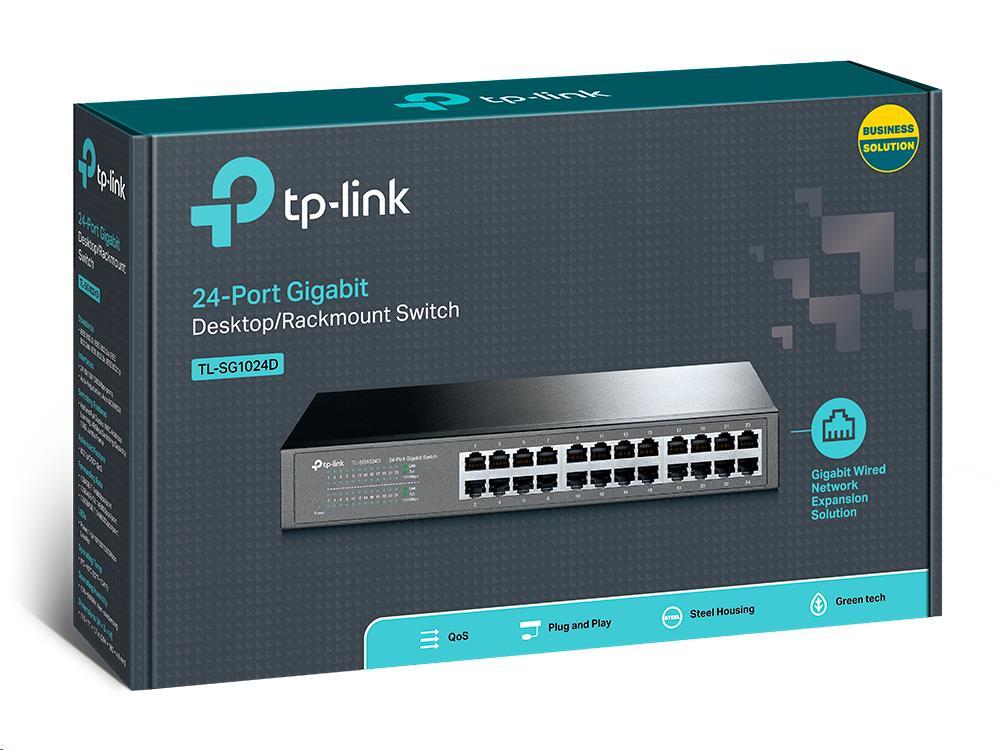

TP-Link TL-SG1024D 24-Port Gigabit Easy Smart Switch

24 Ports

SKU: TL-SG1024D

RRP $199.00
In Stock
Maximum Order Quantity: 10
Dispatch from warehouse in 3-5 working days
0
(0 Reviews)

Calculate Shipping

People who viewed this, also viewed

TP-Link TL-SG1024D 24-Port Gigabit Easy Smart Switch
  • 24 10/100/1000Mbps ports
  • Innovative energy-efficient technology saves power up to 25%
  • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
  • Plug & play design

Features

  • Innovative energy-efficient technology saves power up to 40%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 48Gbps Switching Capacity
  • 10K Jumbo frame improves performance of large data transfers
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Store and forward Switching scheme
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
  • Desktop and Rack-mountable design
  • Plug and Play design simplifies installation
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 14.6W (220V/50Hz)
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
PERFORMANCE
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Jumbo Frame 10KB
Green Technology Innovative energy-efficient technology saves power up to 25%
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents 24-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
SKU TL-SG1024D
Model # TL-SG1024D
Barcode # 845973020620
Brand TP-Link
Shipping Weight 1.9700kg
Shipping Width 0.020m
Shipping Height 0.010m
Shipping Length 0.020m
Shipping Cubic 0.000004000m3
Unit Of Measure ea
Type store
1 Year Limited Manufacturer Warranty
