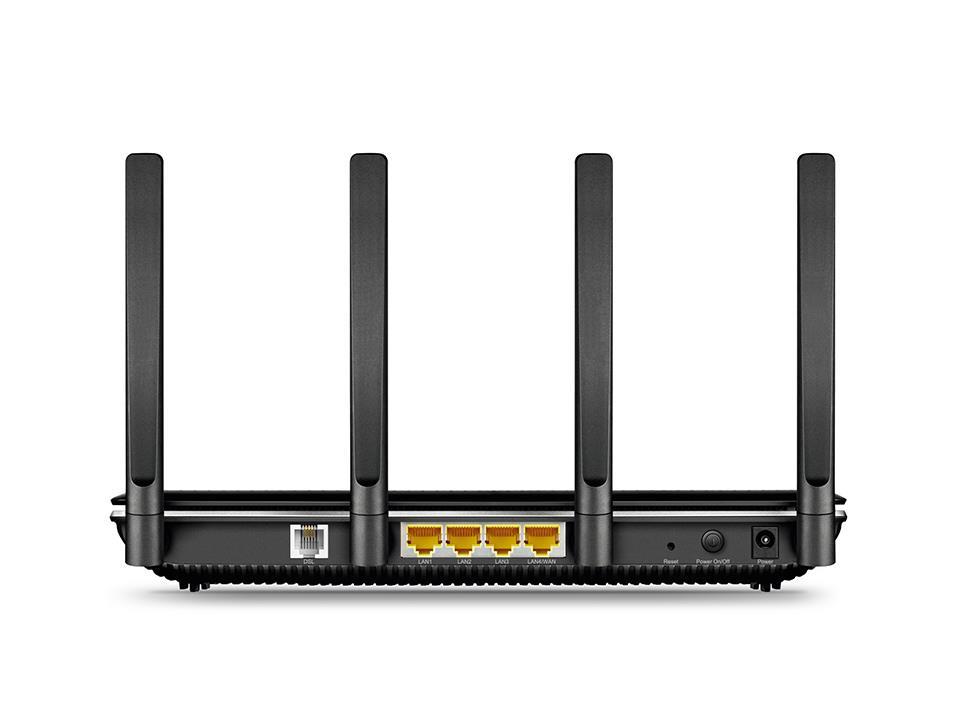

TP-Link Archer VR2800 AC2800 Wireless VDSL/ADSL Modem Router it's The Fastest VDSL Modem Router – The Archer VR2800 runs at 2167Mbps on 5GHz and 600Mbps on 2.4GHz
802.11ac Wave 2 – The latest standard of Wi-Fi includes MU-MIMO and 160MHz Bandwidth
1GHz dual-core CPU – Broadcom 1GHz dual-core CPU with two co-processors keeps VR2800 running at peak performance
TP-Link Tether App – TP-Link Tether app helps you set up and manage your Archer VR2800 from any Android or iOS device.
Features
|
HARDWARE FEATURES
|
|
Interface
|
3 10/100/1000Mbps RJ45 LAN Ports,
1 10/100/1000Mbps RJ45 WAN/LAN Port,
1 RJ11 Port,
2 USB 3.0
|
|
Button
|
WPS Button,
Wi-Fi Button,
Reset Button,
LED On/Off Button,
Power On/Off Button
|
|
External Power Supply
|
12V/3.3A
|
|
IEEE Standards
|
IEEE 802.3, IEEE 802.3u, 802.3ab
|
|
VDSL2 Standards
|
TU G.993.2, Up to 17a profile (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
|
|
ADSL Standards
|
Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs)
|
|
ADSL2 Standards
|
ITU-T G.992.3 (G.DMT.bis)
|
|
ADSL2+ Standards
|
ITU-T G.992.5
|
|
Dimensions ( W x D x H )
|
10.4 × 7.8 × 1.5 in
(263.8 × 197.8 × 37.3 mm)
|
|
Antenna Type
|
4 external detachable dual band antennas (RP-SMA)
|
|
WIRELESS FEATURES
|
|
Wireless Standards
|
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
|
|
Frequency
|
2.4GHz and 5GHz (Supports DFS)
|
|
Transmit Power
|
<20dBm (2.4GHz),
<23dBm (5GHz Band1 & Band2),
<30dBm (5GHz Band3)
|
|
Wireless Security
|
64/128-bit WEP,
WPA/WPA2,
WPA-PSK/WPA-PSK2 encryptions
|
|
SOFTWARE FEATURES
|
|
Quality of Service
|
ATM QoS,
Traffic Control (IP QoS)
|
|
Security
|
NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
|
|
Management
|
Web Based Configuration (HTTP / HTTPS ), Remote management,
Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update
|
|
Port Forwarding
|
Virtual Server, Port Triggering, DMZ, ALG, UPnP
|
|
VPN Pass-Through
|
OpenVPN, PPTP VPN, IPSec VPN
|
|
Protocols
|
Support IPv4 and IPv6
|
|
ATM/PPP Protocols
|
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over
Ethernet (RFC2516),
IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
|
|
Advanced Features
|
Parental Controls, Network Address Translation(NAT), Port Mapping
(Grouping),
Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3
|
|
USB Sharing
|
Support Samba (Storage) / FTP Server / Media Server / Printer Server, 3G/4G Modem / SFTP Server / Web Storage
|
|
OTHERS
|
|
Certification
|
CE, RCM, RoHS
|
|
Package Contents
|
AC2800 Wireless MU-MIMO VDSL/ADSL Modem Router Archer VR2800
External Splitter
RJ11 DSL Cable
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
|
|
System Requirements
|
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10,
Mac OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Subscription with an internet service provider (for internet access)
|
|
Environment
|
Operating Temperature: 0?~40?(32?~104?)
Storage Temperature: -40?~70?(-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
| SKU |
ArcherVR2800 |
| Model # |
ArcherVR2800 |
| Barcode # |
06935364096090 |
| Brand |
TP-Link |
| Shipping Weight |
1.3000kg |
| Shipping Width |
0.280m |
| Shipping Height |
0.050m |
| Shipping Length |
0.340m |
| Unit Of Measure |
ea |
| Type |
store |
1 Years Limited Manufacturer Warranty
