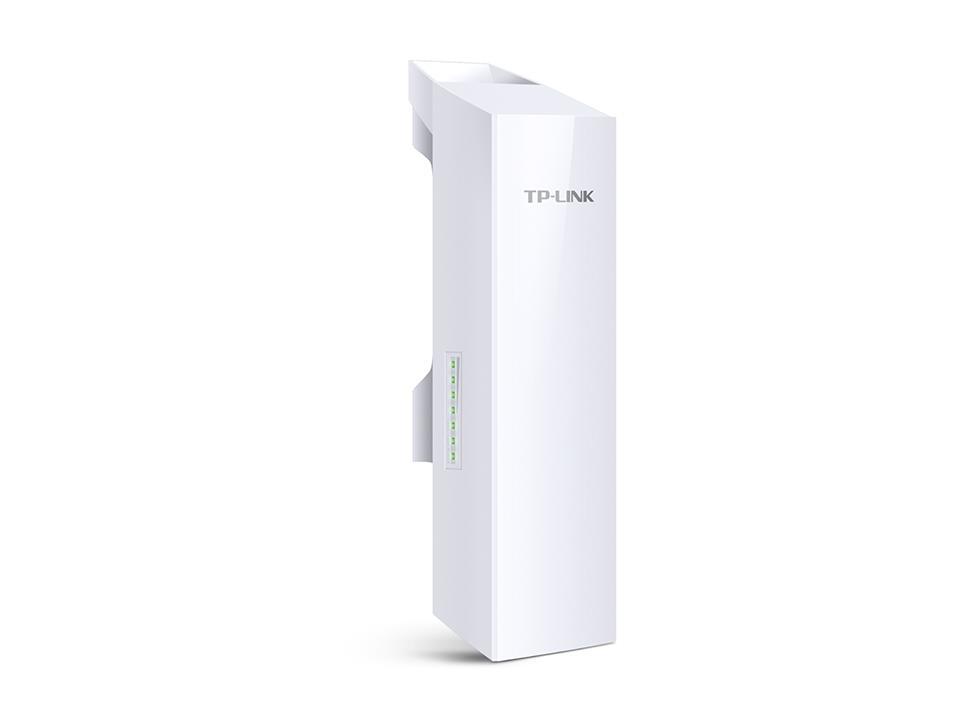

TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Features
|
HARDWARE FEATURES
|
|
Processor
|
Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
|
|
Memory
|
64MB DDR2 RAM, 8MB Flash
|
|
Interface
|
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button
|
|
Power Supply
|
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
|
|
Power Consumption
|
10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
|
|
Dimensions ( W x D x H )
|
224 x 79 x 60 mm
|
|
Antenna Type
|
Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
|
|
Protection
|
15KV ESD Protection
6KV Lightning Protection
|
|
Enclosure
|
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
|
|
WIRELESS FEATURES
|
|
Wireless Standards
|
IEEE 802.11a/n (with Pharos MAXtream disabled)
|
|
Proprietary Protocol
|
TDMA Mode (with Pharos MAXtream enabled)
|
|
Wireless Speeds
|
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
|
|
Frequency
|
5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
|
|
Transmission Power
|
23dBm/200mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
|
|
SOFTWARE FEATURES
|
|
Wireless Configurations
|
Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
|
|
Management
|
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
|
|
System Tools
|
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
|
|
System-level Optimizations
|
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
|
|
POE ADAPTER FEATURES
|
|
Dimensions(W x D x H)
|
110*57*33.5mm
|
|
Input Current
|
0.8A Max @ 100VAC
|
|
Input Voltage
|
100VA~240VAC @ 50Hz~60Hz
|
|
Output
|
24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
|
|
Efficiency
|
>80%
|
|
Output Voltage
|
24VDC(+4,5pins; -7,8pins)
|
|
Input
|
100-240VAC, 50/60Hz
|
|
Power Status LEDs
|
0~0.8A: Green
0.8A~1.0A: Red
|
|
Certifications
|
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
|
|
Interfaces
|
1 AC Jack with Earth Ground
1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
1 10/100/1000Mbps Shielded Ethernet Port (Data)
|
|
Button
|
Remote Reset Button
|
|
OTHERS
|
|
Certification
|
CE, FCC, RoHS, IPX5
|
|
Package Contents
|
Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
|
|
System Requirements
|
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
|
|
Environment
|
Operating Temperature: -30°C~70°C (-22?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
|
| SKU |
CPE510 |
| Model # |
CPE510 |
| Barcode # |
6935364070922 |
| Brand |
TP-Link |
| Shipping Weight |
0.1000kg |
| Shipping Width |
0.220m |
| Shipping Height |
0.060m |
| Shipping Length |
0.080m |
| Shipping Cubic |
0.001056000m3 |
| Unit Of Measure |
ea |
| Type |
store |
1 Year Limited Manufacturer Warranty
