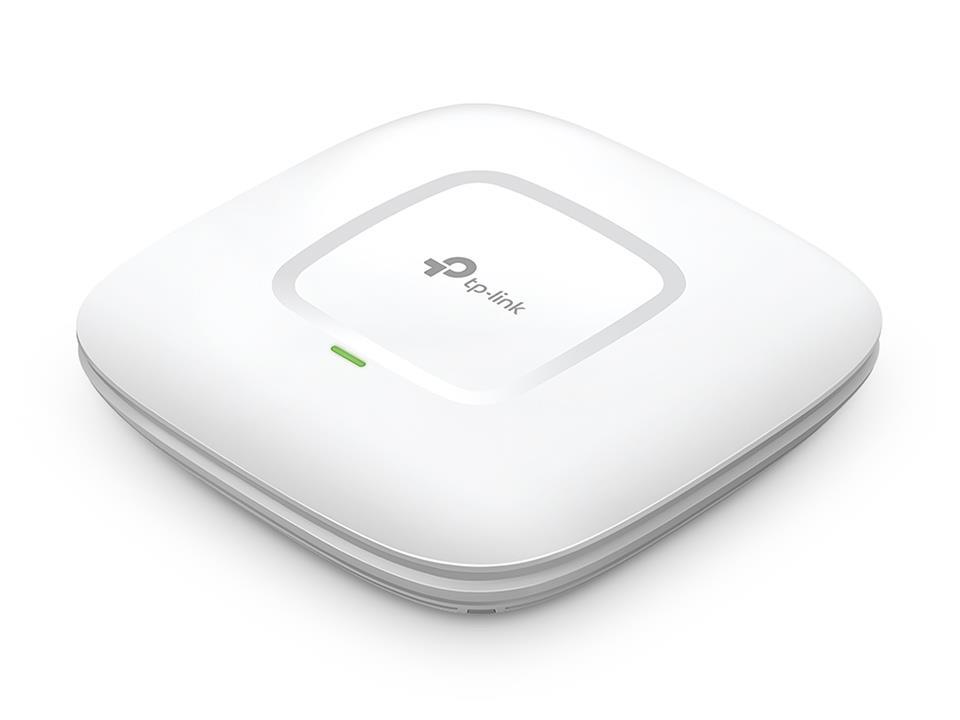

TP-Link EAP115 300Mbps Ceiling Mount Access Point
300Mbps Wireless N Ceiling Mount Access Point EAP115
-
Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
-
The user-friendly Cluster Mode allows manage up to 24 (EAP115) without requiring any extra hardware or software
-
Supports Power over Ethernet (802.3af) for convenient and affordable installation
-
Simple mounting design for easy attachment to a wall or ceiling
-
Captive portal provides one convenient method of authentication for Wi-Fi guests
-
Enterprise class Wi-Fi security help to decrease network security threats
-
Multi-SSID divides multiple wireless networks for different user types
Features
|
HARDWARE FEATURES
|
|
Interface
|
Fast Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)
|
|
Button
|
Reset
|
|
Power Supply
|
PoE or external 12VDC/1.0A power supply
|
|
Power Consumption
|
5W
|
|
Wireless Standards
|
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
|
|
Dimensions ( W x D x H )
|
7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
|
|
Antenna Type
|
Internal 2* 3dBi Omni
|
|
Mounting
|
Ceiling /Wall Mounting (Kits included)
|
|
Physical Security Lock
|
Kensington Lock Slot
|
|
Watch Dog
|
Yes
|
|
WIRELESS FEATURES
|
|
Wireless Standards
|
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
|
|
Frequency
|
2.4-2.4835GHz
|
|
Signal Rate
|
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
|
|
Reception Sensitivity
|
300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
|
|
Wireless Functions
|
Multiple SSIDs (Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
|
|
Wireless Security
|
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
|
|
Transmission Power
|
CE:
<20dBm
FCC:
<26dBm
|
|
MANAGEMENT
|
|
Auranet Controller Software
|
Yes
|
|
Cluster Mode
|
Yes
|
|
Email Alerts
|
Yes
|
|
LED ON/OFF Control
|
Yes
|
|
Management MAC Access Control
|
Yes
|
|
SNMP
|
v1,v2c
|
|
System Logging Local/Remote Syslog
|
Local/Remote Syslog
|
|
Telnet
|
Yes
|
|
Web-based Management
|
HTTP/HTTPS
|
|
OTHERS
|
|
Certification
|
CE, FCC, RoHS
|
|
Package Contents
|
300Mbps Wireless N Ceiling Mount Access Point EAP115
Power Adapter
Mounting Kits,
Installation Guide
|
|
System Requirements
|
Microsoft Windows 10/8/7/Vista/XP
|
|
Environment
|
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
| SKU |
EAP115 |
| Model # |
EAP115 |
| Barcode # |
6935364096939 |
| Brand |
TP-Link |
| Shipping Weight |
0.8000kg |
| Shipping Width |
0.240m |
| Shipping Height |
0.040m |
| Shipping Length |
0.260m |
| Shipping Cubic |
0.002496000m3 |
| Unit Of Measure |
ea |
| Type |
store |
3 Year Manufacturer Warranty
