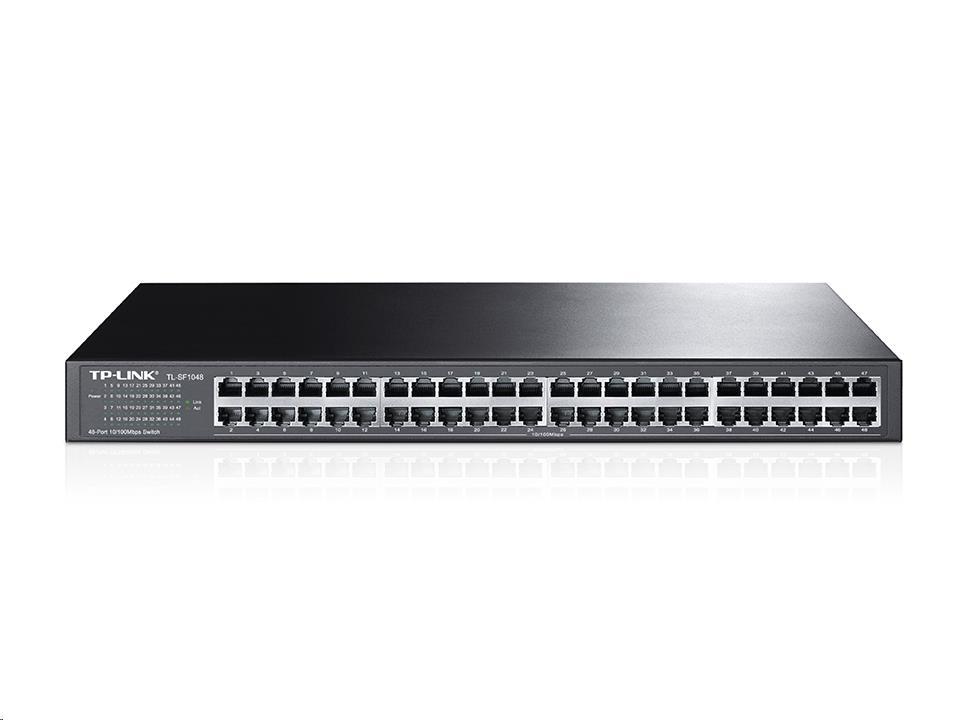

TP-Link TL-SF1048 10/100Mbps 48 Prot Switch it's Innovative energy-efficient technology saves power up to 50%
100% Data filtering rate eliminates all error packets
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
9.6Gbps Switching Capacity
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Support the port N-Way Auto-Negotiation, Store and Forward
Compact size design for desktops, Rackmountable
Plug and Play design simplifies installation.
Features
What This Product Does
The TL-SF1048 10/100Mbps Switch is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. All 48 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-eff cient technology, TL-SF1048 can save up to 50%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SF1048 10/100Mbps Switch features the latest innovative energy-effcient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
Featuring non-blocking switching architecture,TL-SF1048 forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1048 work reliably.
Easy to Use
The auto features of this Fast Ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.
|
HARDWARE FEATURES
|
|
Standards and Protocols
|
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
|
|
Interface
|
48 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
|
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
|
|
Fan Quantity
|
Fanless
|
|
Power Supply
|
100-240VAC, 50/60Hz
|
|
Power Consumption
|
Maximum: 9.9W (220V/50Hz)
|
|
Dimensions ( W x D x H )
|
17.3*7.1*1.7 in. (440*180*44 mm)
|
|
PERFORMANCE
|
|
Switching Capacity
|
9.6Gbps
|
|
Packet Forwarding Rate
|
7.14Mpps
|
|
MAC Address Table
|
8K
|
|
Green Technology
|
Innovative energy-efficient technology saves power up to 50%
|
|
Transfer Method
|
Store-and-Forward
|
|
OTHERS
|
|
Certification
|
FCC, CE, RoHS
|
|
Package Contents
|
48-Port 10/100Mbps Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
|
|
System Requirements
|
Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
|
|
Environment
|
Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
|
| SKU |
TL-SF1048 |
| Model # |
TL-SF1048 |
| Barcode # |
845973020286 |
| Brand |
TP-Link |
| Shipping Weight |
1.9700kg |
| Shipping Width |
0.240m |
| Shipping Height |
0.040m |
| Shipping Length |
0.320m |
| Shipping Cubic |
0.003072000m3 |
| Unit Of Measure |
ea |
| Type |
store |
3 Year Manufacturer Warranty
