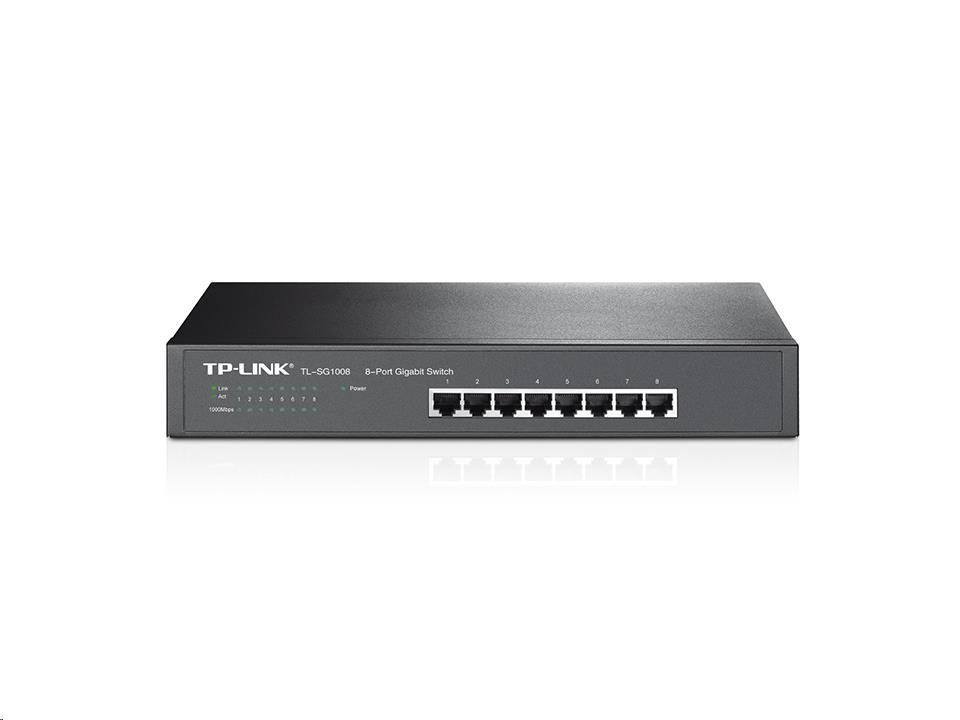

TP-Link TL-SG1008 8-Port Gigabit Desktop Switch

10/100/1000Mbps | 8-Port | Rackmount

SKU: TL-SG1008

RRP $75.00
In Stock
Maximum Order Quantity: 10
Dispatch from warehouse in 3-5 working days
0
(0 Reviews)

Calculate Shipping

People who viewed this, also viewed

TP-Link TL-SG1008 10/100/1000Mbps 8 Prot Switch it's 100% Data filtering rate eliminates all error packets Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput 16Gbps Switching Capacity 802.1p/DSCP QoS enable smooth latency-sensitive traffic Auto-MDI/MDIX eliminates the need for crossover cables Supports MAC address auto-learning and auto-aging Support the port N-Way Auto-Negotiation, Store and Forward Compact size design for desktops, rackmountable Plug and Play design simplifies installation Fanless design to make sure it works quietly.

Features

What This Product Does

The TL-SG1008 8-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1008 can save the power consumption, making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation The 8-Port Gigabit Desktop/Rackmount Switch TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance

The TL-SG1008 features non-blocking wire-speed architecture with a 16Gbps switching capacity for maximum data throughput. An 4K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Ease to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis. TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 4.08W (220V/50Hz)
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
PERFORMANCE
Switching Capacity 16Gbps
Packet Forwarding Rate 11.9Mpps
MAC Address Table 4K
Jumbo Frame 16KB
Transfer Method Store-and-Forward
SOFTWARE FEATURES
Advanced Features MAC address auto-learning and auto-aging
IEEE802.3x Flow control

802.1p/DSCP QoS
OTHERS
Certification FCC, CE, RoHS
Package Contents 8-Port Gigabit Desktop Switch
Power Cord
Installation Guide
Rackmount kit
Rubber Feet
Environment Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
SKU TL-SG1008
Model # TL-SG1008
Barcode # 06935364021573
Brand TP-Link
Shipping Weight 2.5000kg
Shipping Width 0.240m
Shipping Height 0.040m
Shipping Length 0.280m
Shipping Cubic 0.002688000m3
Unit Of Measure ea
Type store
3 Year Manufacturer Warranty
