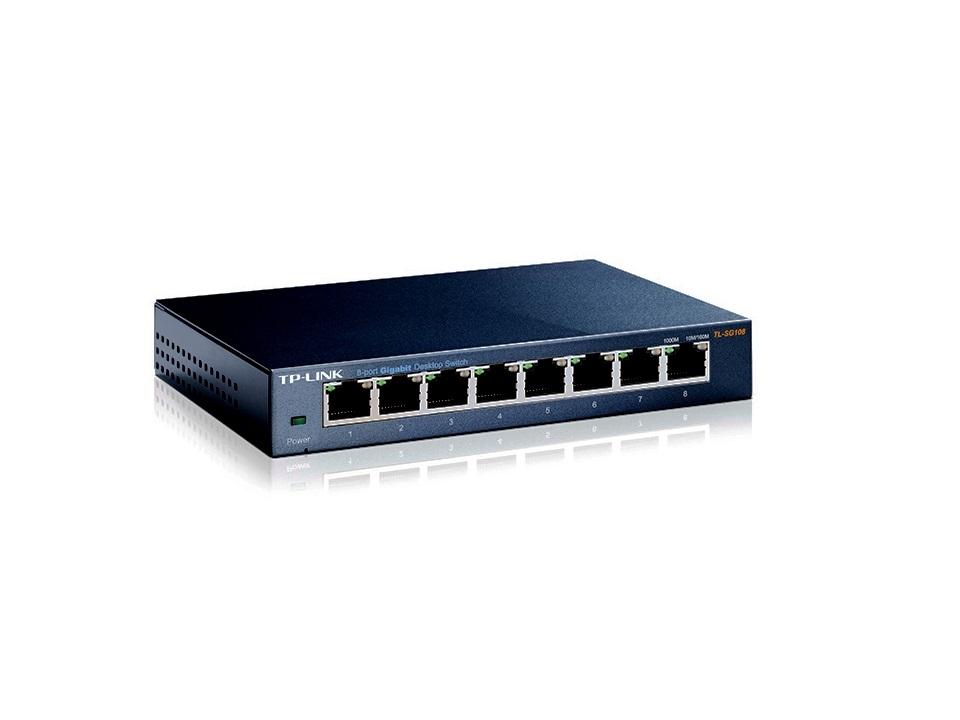

TP-Link TL-SG108 8-Port Desktop Switch

8 Ports | Gigabit Ports

SKU: TL-SG108

RRP $61.00
In Stock
Maximum Order Quantity: 10
Dispatch from warehouse in 3-5 working days
0
(0 Reviews)

Calculate Shipping


  • 8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Green Ethernet technology saves the power up to 82%
  • IEEE 802.3x flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Support 802.1p/DSCP QoS1 and IGMP Snooping function1
  • Plug and play, no configuration needed

Features

What This Product Does

The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 82% of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 8 10/100/1000Mbps ports, TL-SG108 greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG108 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

  • Power down Idle Ports
    When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG108 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 82% reduction in power use.
  • Power Budget According to Cable Length
    Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Traffic Optimization

802.1p and DSCP QoS1 enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping1 optimizes the Multicast data stream.

Easy to Use

 The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3 / 802.3u / 802.3ab/ 802.3x /802.1p
Interface 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
Dimensions (W X D X H) 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
Power Consumption Maximum: 3.97 (220V/50Hz)
External Power Supply External Power Adapter (Output: 9VDC / 0.6A)
Buffer Size 1.5Mb
LED Indicator System Power
Link, Speed and activity indicators per port built into each RJ-45 port
PERFORMANCE
Packet Forwarding Rate 11.9Mpps
MAC Address Table 4K
Packet Buffer Memory 1.5Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Advanced Features Green Technology,saving power up to 82%
802.3X Flow Control
802.1p/DSCP QoS1
IGMP Snooping1
Transfer Method Store and Forward
OTHERS
Certification CE, FCC ,RoHS
Package Contents 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
SKU TL-SG108
Model # TL-SG108
Barcode # 845973021153
Brand TP-Link
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.000750000m3
Unit Of Measure ea
Type store
1 Year Manufacture Warranty
